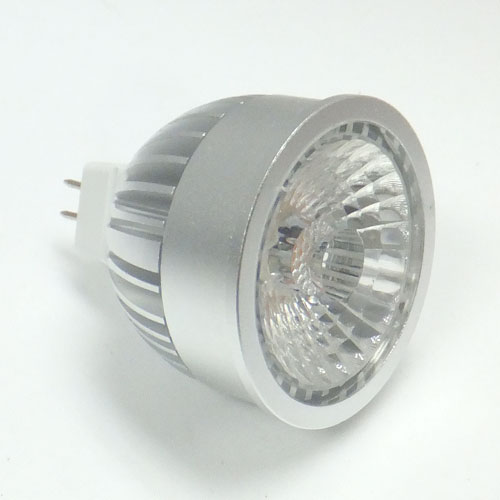

This COB LED spot light use die-casting aluminum heatsink, Unique design and good heat dissipation ,High quality Epistar/SHARP/CITIZEN LED 1*5W GU10 AC110-240 Spotlight Warm white/Cool white 110-120LM/LED.
COB 1*5W MR16 AC110-240 Spotlight Warm white/Cool white 110-120LM/LED
Specifications:
Item No.: G-SLC-6
1*5W COB MR16 AC110-240 V Spotlight
Warm white/Cool white
2 years warranty
110-120LM/LED
6030 Aluminum Shell
1. Base Type: MR16 (GU10 , E27 B22 base available)
2. Input Voltage: AC110-240V
3. Light source: 1 pcs 5W Epistar/SHARP/CITIZEN LED
4.Output Power: 5.5W
5.Color temperature:
(Cool White)6000-7000K; (Warm White)2700-3300K
6.Luminous flux:400LM ~450LM
7. Lens beam angle: lens 45/60 degree
8. Ambient Temperature: less than 45/60°C
9. Source life: 50,000 hours
10. Over current protection
11. Size: D50*H 65MM
12. Warranty period : 2 Years
13. Package: 55*55*75mm
13. Package:53*27*16cm /crt (100pcs)
14. Gross Weight: 75g/pcs ; 7.5kg/CTN
15.Shell color: Aluminum and Silver
Installtion:
1.Remove the non-functioning bulb from its socket. This can usually be done by removing a retaining clip with your fingers, then removing the UV-coated circular glass pane. After the UV glass pane is removed, you can pull the bulb and wiring harness from the housing. Remove the bulb by pulling it away from the harness with one hand while holding on to the harness with the other.
2. Insert the new bulb by pressing the two exposed pins on the rear of the bulb into the two holes in the harness.
3. Replace the bulb and harness into the housing, then replace the glass pane and retaining clip.
Applications
1) Interior accent lighting and perimeter lighting.
2) Exhibit lighting.
3) Museum lighting.
4) Scene lighting such as valley, restaurant, hotel, etc.
5) Display lighting such as shopping mall, showroom and counter etc.
